U-Net 실습2 - 네트워크 구조, Dataloader, Transform 구현

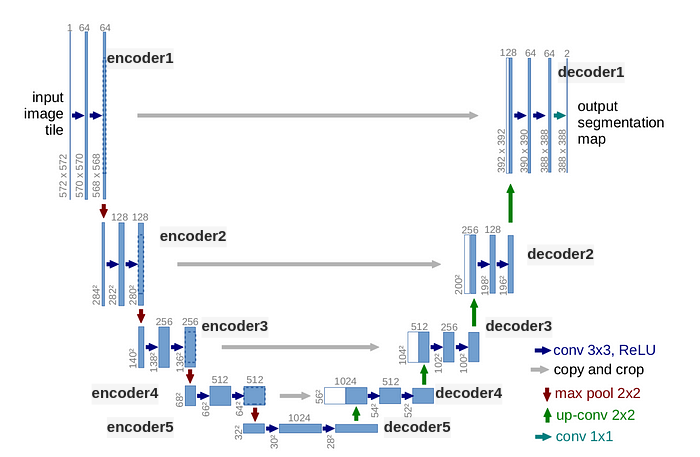

U-Net 네트워크 구조

import os
import numpy as np
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter

from torchvision import transforms, datasets

### Hyper Parameters
lr = 1e-3
batch_size = 4
num_epoch = 100

data_dir = 'workspace/data'
ckpt_dir = 'workspace/checkpoint'
log_dir = 'workspace/log'

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

### Network
class UNet(nn.Module):
    def __init__(self):
        super(UNet, self).__init__()

        ## Convolution, BatchNormalization, Relu 2D
        def CBR2d(in_channels, out_channels, kernel_size=3, stride=1, padding=1, bias=True):
            layers = []
            # Conv
            layers += [nn.Conv2d(in_channels=in_channels, out_channels=out_channels,
                                kernel_size=kernel_size, stride=stride, padding=padding,
                                bias=bias)]
            # Batch Normalization
            layers += [nn.BatchNorm2d(num_features=out_channels)]
            # Relu
            layers += [nn.ReLU()]

            cbr = nn.Sequential(*layers)
            return cbr

        ## Contracting path (enc1_1 : Encoder First Stage First Step)
        self.enc1_1 = CBR2d(in_channels=1, out_channels=64)
        self.enc1_2 = CBR2d(in_channels=64, out_channels=64)

        self.pool1 = nn.MaxPool2d(kernel_size=2)

        self.enc2_1 = CBR2d(in_channels=64, out_channels=128)
        self.enc2_2 = CBR2d(in_channels=128, out_channels=128)

        self.pool2 = nn.MaxPool2d(kernel_size=2)

        self.enc3_1 = CBR2d(in_channels=128, out_channels=256)
        self.enc3_2 = CBR2d(in_channels=256, out_channels=256)

        self.pool3 = nn.MaxPool2d(kernel_size=2)

        self.enc4_1 = CBR2d(in_channels=256, out_channels=512)
        self.enc4_2 = CBR2d(in_channels=512, out_channels=512)

        self.pool4 = nn.MaxPool2d(kernel_size=2)

        self.enc5_1 = CBR2d(in_channels=512, out_channels=1024)

        ## Expansive path (dec5_1 : Decoder Fifth Stage First Step)
        self.dec5_1 = CBR2d(in_channels=1024, out_channels=512)

        self.unpool4 = nn.ConvTranspose2d(in_channels=512, out_channels=512,
                                          kernel_size=2, stride=2, padding=0,
                                          bias=True)

        self.dec4_2 = CBR2d(in_channels=2 * 512, out_channels=512) # Skip Connection Exist
        self.dec4_1 = CBR2d(in_channels=512, out_channels=256) # match with enc4_1

        self.unpool3 = nn.ConvTranspose2d(in_channels=256, out_channels=256,
                                          kernel_size=2, stride=2, padding=0, bias=True)

        self.dec3_2 = CBR2d(in_channels=2 * 256, out_channels=256) # Skip Connection Exist
        self.dec3_1 = CBR2d(in_channels=256, out_channels=128) # match with enc3_1

        self.unpool2 = nn.ConvTranspose2d(in_channels=128, out_channels=128,
                                          kernel_size=2, stride=2, padding=0, bias=True)

        self.dec2_2 = CBR2d(in_channels=2 * 128, out_channels=128) # Skip Connection Exist
        self.dec2_1 = CBR2d(in_channels=128, out_channels=64) # match with enc2_1

        self.unpool1 = nn.ConvTranspose2d(in_channels=64, out_channels=64,
                                          kernel_size=2, stride=2, padding=0, bias=True)

        self.dec1_2 = CBR2d(in_channels=2 * 64, out_channels=64) # Skip Connection Exist
        self.dec1_1 = CBR2d(in_channels=64, out_channels=64)

        self.fc = nn.Conv2d(in_channels=64, out_channels=1, kernel_size=1,
                            stride=1, padding=0,bias=True)

    def forward(self, x):
        ## Contracting path
        enc1_1 = self.enc1_1(x)
        enc1_2 = self.enc1_2(enc1_1)
        pool1 = self.pool1(enc1_2)

        enc2_1 = self.enc2_1(pool1)
        enc2_2 = self.enc2_2(enc2_1)
        pool2 = self.pool2(enc2_2)

        enc3_1 = self.enc3_1(pool2)
        enc3_2 = self.enc3_2(enc3_1)
        pool3 = self.pool3(enc3_2)

        enc4_1 = self.enc4_1(pool3)
        enc4_2 = self.enc4_2(enc4_1)
        pool4 = self.pool4(enc4_2)

        enc5_1 = self.enc5_1(pool4)

        dec5_1 = self.dec5_1(enc5_1)

        ## Expansive path
        '''
        cat or concatenate
        dim=[0:batch,1:channel,2:height,3:width]
        '''
        unpool4 = self.unpool4(dec5_1)
        cat4 = torch.cat((unpool4, enc4_2), dim=1)
        dec4_2 = self.dec4_2(cat4)
        dec4_1 = self.dec4_1(dec4_2)

        unpool3 = self.unpool3(dec4_1)
        cat3 = torch.cat((unpool3, enc3_2), dim=1)
        dec3_2 = self.dec3_2(cat3)
        dec3_1 = self.dec3_1(dec3_2)

        unpool2 = self.unpool2(dec3_1)
        cat2 = torch.cat((unpool2, enc2_2), dim=1)
        dec2_2 = self.dec2_2(cat2)
        dec2_1 = self.dec2_1(dec2_2)

        unpool1 = self.unpool1(dec2_1)
        cat1 = torch.cat((unpool1, enc1_2), dim=1)
        dec1_2 = self.dec1_2(cat1)
        dec1_1 = self.dec1_1(dec1_2)

        x = self.fc(dec1_1)

        return x



Data Loader

### Data Loader
class Dataset(torch.utils.data.Dataset) :
    def __init__(self, data_dir, transform=None):
        self.data_dir = data_dir
        self.transform = transform

        lst_data = os.listdir(self.data_dir)
        lst_label = [f for f in lst_data if f.startswith('label')]
        lst_input = [f for f in lst_data if f.startswith('input')]

        lst_label.sort()
        lst_input.sort()

        self.lst_label = lst_label
        self.lst_input = lst_input

    def __len__(self):
        return len(self.lst_label)

    def __getitem__(self,index):
        label = np.load(os.path.join(self.data_dir, self.lst_label[index]))
        input = np.load(os.path.join(self.data_dir, self.lst_input[index]))

        label = label/255.0
        input = input/255.0

        if label.ndim == 2 :
            label = label[:,:,np.newaxis]
        if input.ndim == 2 :
            input = input[:,:,np.newaxis]

        data = {'input': input, 'label':label}

        if self.transform:
            data = self.transform(data)

        return data

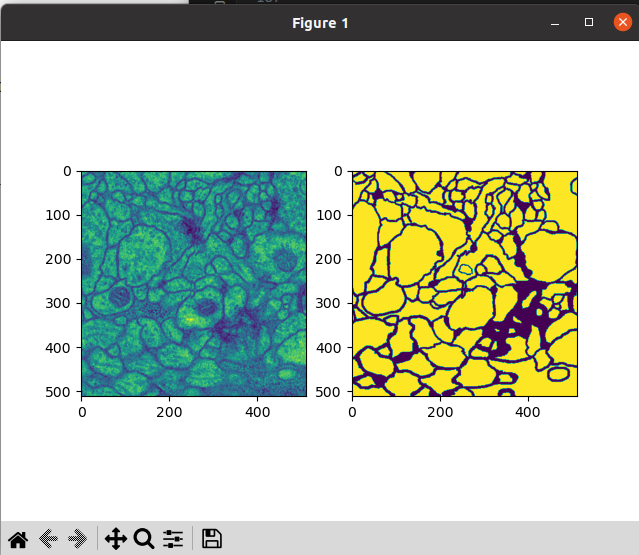

DataLoder 작동 테스트

##
dataset_train = Dataset(data_dir=os.path.join(data_dir, 'train'))

##
data =dataset_train.__getitem__(0)

input = data['input']
label = data['label']

##
plt.subplot(121)
plt.imshow(input)

plt.subplot(122)
plt.imshow(label)

plt.show()

# (512, 512, 1)
print(label.shape)



Transform

• Image의 Numpy 차원 = (Y, X, CH)
• Image의 Tensor 차원 = (CH, Y, X)

### Transform
class ToTensor(object):
    def __call__(self,data) :
        label, input = data['label'], data['input']

        # np = (Y, X, CH) -> tensor = (CH, Y, X)
        label = label.transpose((2,0,1)).astype(np.float32)
        input = input.transpose((2,0,1)).astype(np.float32)

        data = {'label':torch.from_numpy(label),
                'input':torch.from_numpy(input)}

        return data

class Normalization(object):
    def __init__(self, mean=0.5, std=0.5):
        self.mean = mean
        self.std = std

    def __call__(self, data):
        label, input = data['label'], data['input']
        input = (input-self.mean) / self.std
        data = {'label':label, 'input':input}
        return data

class RandomFlip(object):
    def __call__(self, data) :
        label, input = data['label'], data['input']

        if np.random.rand() > 0.5 :
            label = np.fliplr(label) # left-right
            input = np.fliplr(input)

        if np.random.rand() > 0.5 :
            label = np.flipud(label) # up-down
            input = np.flipud(input)

        data = {'label':label, 'input': input}
        return data



Transform 작동 테스트

##
transform = transforms.Compose([Normalization(),RandomFlip(),ToTensor()])
dataset_train = Dataset(data_dir=os.path.join(data_dir, 'train'), transform=transform)

##
data = dataset_train.__getitem__(0)

input = data['input']
label = data['label']

##
plt.subplot(1,2,1)
plt.imshow(input.squeeze())

plt.subplot(1,2,2)
plt.imshow(label.squeeze())

plt.show()

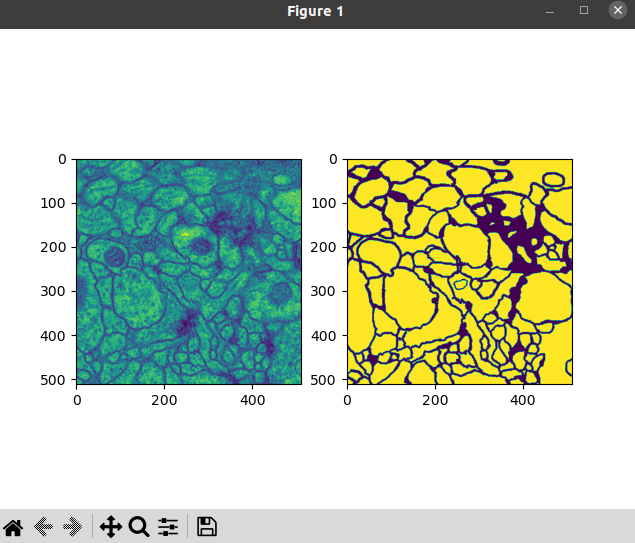

뒤집어져서 출력된 input과 label





• 버그 수정 : dimension에서 channel이 앞으로오면서 size 에러가 발생하기 때문에, squeeze 함수를 통해 채널을 줄여주었습니다.
• Normalize 효과
  • input : 어두운 부분은 -1 쪽으로, 노란색 밝은 부분은 1에 가깝게 Normalize
  • label : Normalize 수행 x, 밝은 부분은 0, 어두운 부분은 1
• 랜덤으로 좌우가 반전 되거나 또는 위 아래가 반전되었습니다.
